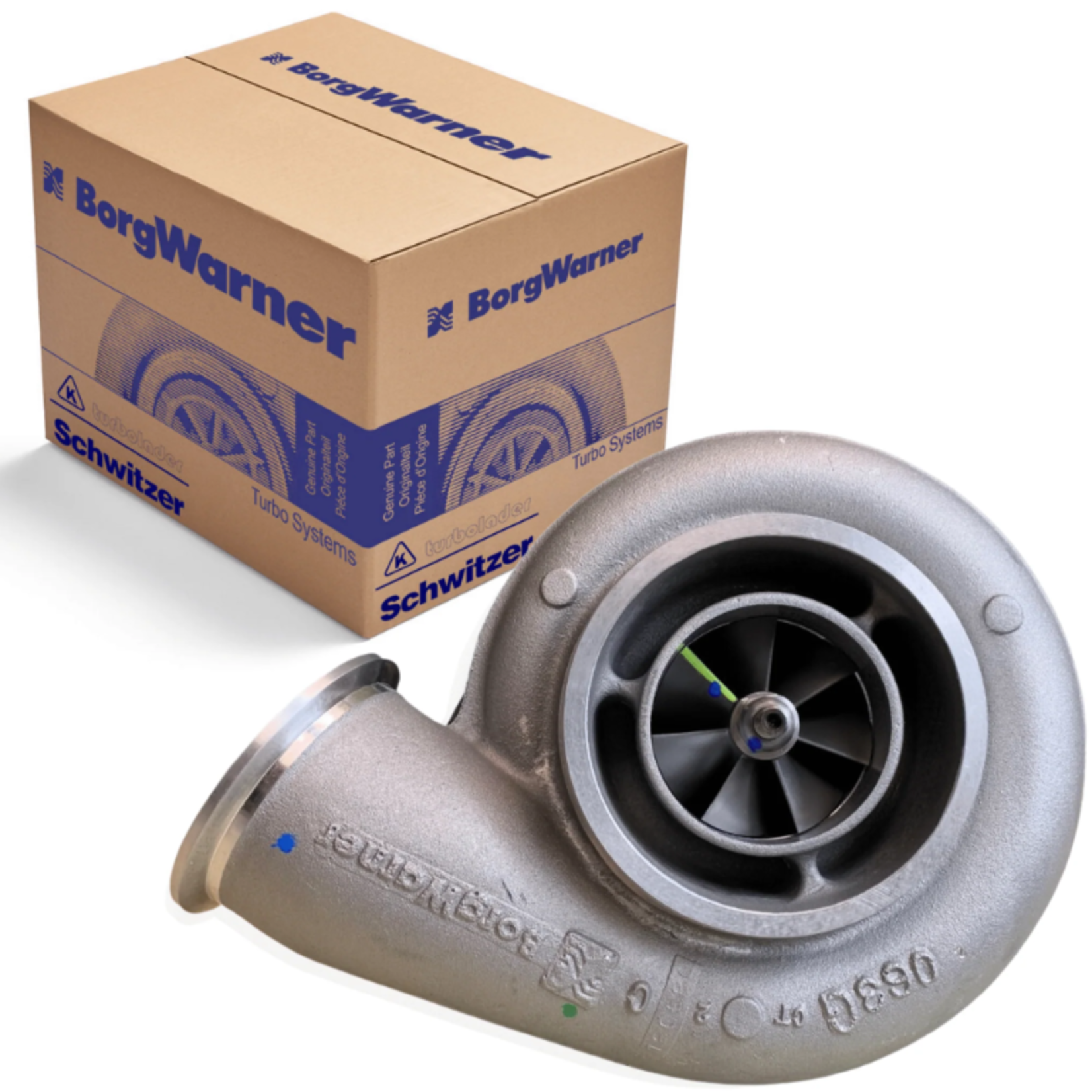

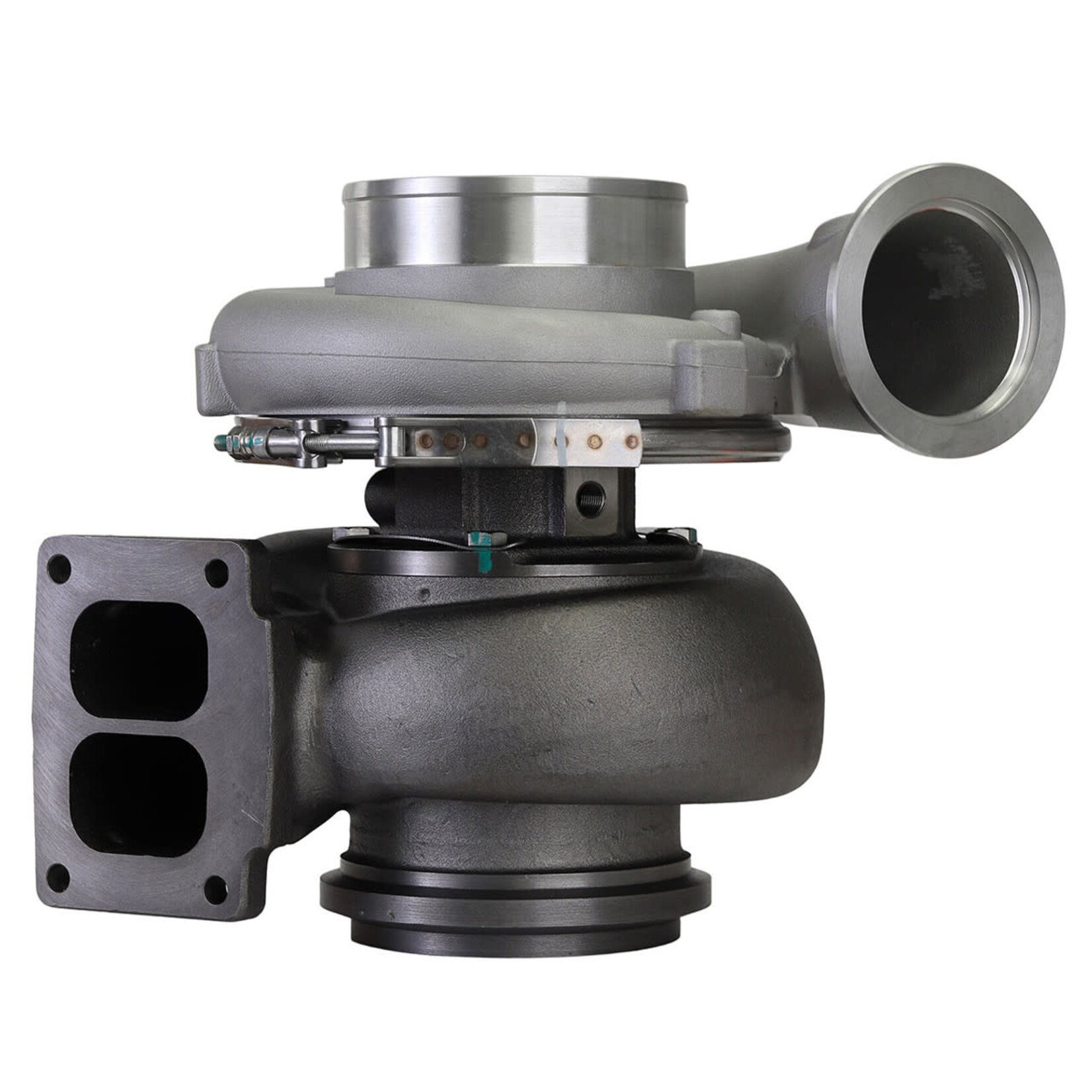

Application: Detroit Series 60 Engines, (2000-08) Navistar, International Harvester Truck with DDC-MTU Series 60 Engine 2000-08 Trucks, Gen Set with DDC-MTU Series 60 Engine

Alternative to: Detroit Series 60 12.7L Turbo (2000-2008)

Description:

• This turbo improves performance and reliability.
• It was engineered to make a reliable and consistent boost while reducing emissions and enhancing fuel efficiency.
• It utilizes extended-tip technology and a high-efficiency turbine stage, providing ultra-fast response and more boost.
• Faster spool-up at lower engine speeds is also achieved, while also providing the boost for powerful top-end performance.

Product Specs:

Part Number: 171702
Year: 2000-08
Engine: Detroit Series 60 & Other Makes and Models.
Engine Manufacturer: DDC-MTU, Detroit Diesel
Displacement: 12.7L, 12700 ccm
Fuel Type: Diesel
Bearing Style: Non-Ball Bearing
Power: 373 kW/500 HP, 410 kW/550 HP
Speed: 2100 RPM
Compressor Wheel Inducer Size: 2.94in. / 75.00mm
Turbine Wheel Exducer Size: 96.00mm
Compressor Wheel Trim: 55.68
Turbine Wheel Trim: 84.70
Turbine Housing A/R Ratio: 1.32
Turbocharger Bearing Style: Non-ball bearing
Compressor Wheel Construction: Cast aluminum
Cooling Method: Oil
Turbine Wheel Outside Diameter: 3.77(in.)/96mm
Includes: Gaskets
Not Included: Wastegate Actuator, Exhaust Adapter, Intake Adapter, Oil Adapter

Warranty: 12 Months

Cross Reference OEMs: 23518588, 23518597, 23523197, 2585838C91 / 466713-0005, 466713-0006 / R23515635, R23515636, R23516431, 23515635, 23516431, 23515636, 23523197, 2585837C91, 466713-0001, 466713-0002, 466713-0003, 466999-0001, 466713-5001S, 466713-5002S, 466991-5001S, 466713-9001, 466713-9005.
